Tundra 2022+ Bumpers + Rocker Guards

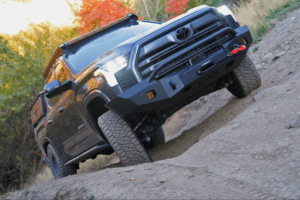

2022+ Tundra Ultra Front Bumper
2022+ Tundra Ultra Front Bumper
All New 2022+ Tundra Ultra Front Bumper!
Approx. weight: 150-180lbs depending on hoop option
Works with integrated winches rated up to 18k lbs
Bumper design incorporates fog lights from stock bumper
Retains compatibility with front sensors and cameras (can be ordered without sensor holes as an additional option)
Multiple winch access points for easy use while also providing extra airflow for engine
Light ports accommodate approx 3.75" light
Available as a base front bumper or with a full wrap-around bull-bar style hoop (shown in photo)
Approx. weight: 150-180lbs depending on hoop option
Works with integrated winches rated up to 18k lbs
Bumper design incorporates fog lights from stock bumper
Multiple winch access points for easy use while also providing extra airflow for engine
Available as a base front bumper or with a full wrap-around bull-bar style hoop (shown in photo)
2022+ Tundra Range Max Front Bumper
2022+ Tundra Range Max Front Bumper
2022+ TOYOTA TUNDRA RANGE MAX FRONT BUMPER!
Comprised of heavy duty 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
Weighs approximately 120lbs lbs
Integrated feet forward winch mount included. Fits most winches rated between 8000-12,500 lbs (Exception - Warn M8274)
Recommended Winch: ComeUp Winch Seal Gen2 12.5rs
Integrated 1 inch thick shackle mounts can accommodate a 3/4 inch shackle
Integrated light ports hold a 4.75 inch round light
Integrated sensor holes.
Made and designed in the U.S.A
Fits 2022+ models

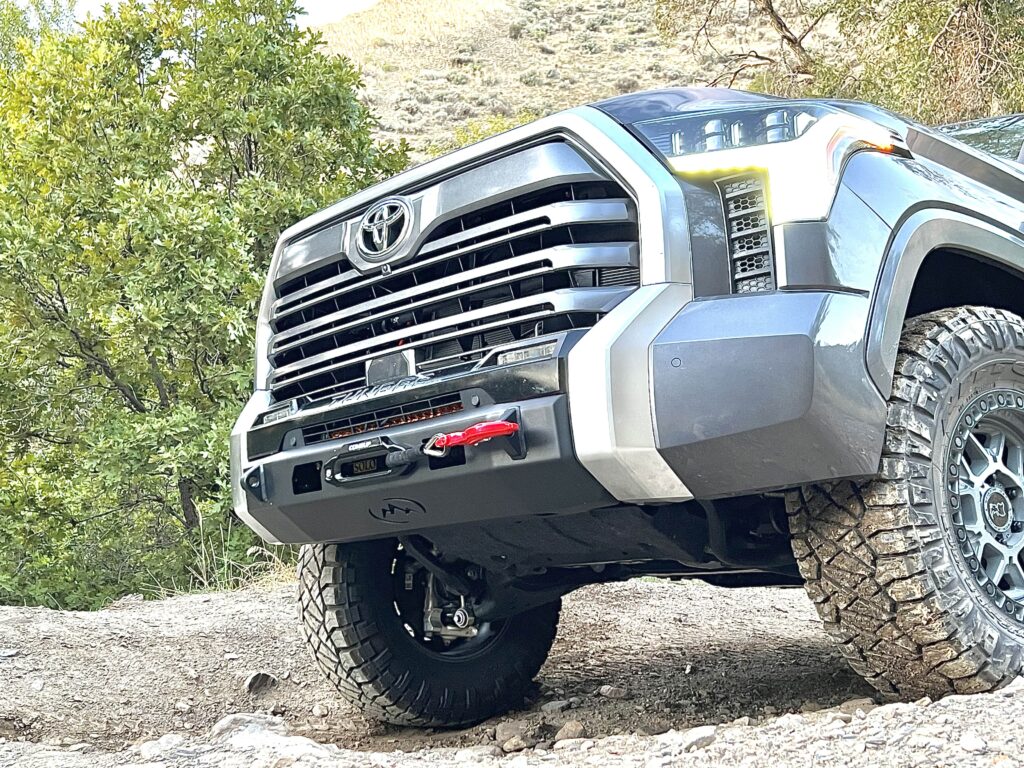

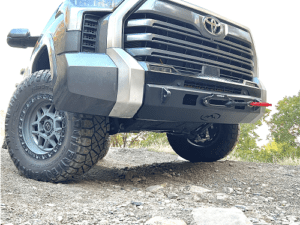

Tundra 2022+ Basic DX Front Winch Mount
Tundra 2022+ Basic DX Front Winch Mount
Tundra 2022+ Basic Dx Winch Mount
Approx. weight 70-80 lbs
Works with ACC/Collision sensors
Fits most small platform winches rated up to 10,000 lbs.
Fits most 20" Light Bars
*Factory Air Dam motor is relocated and not functional.

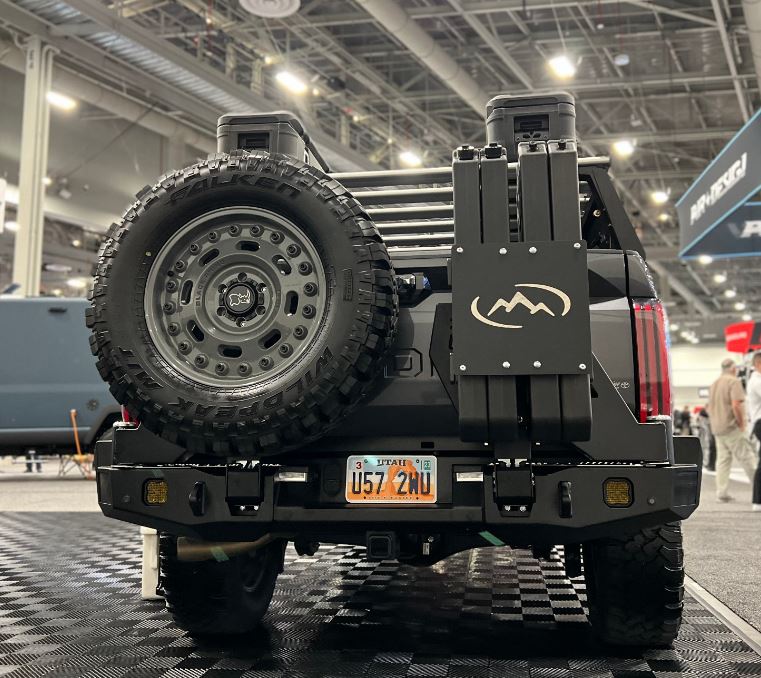

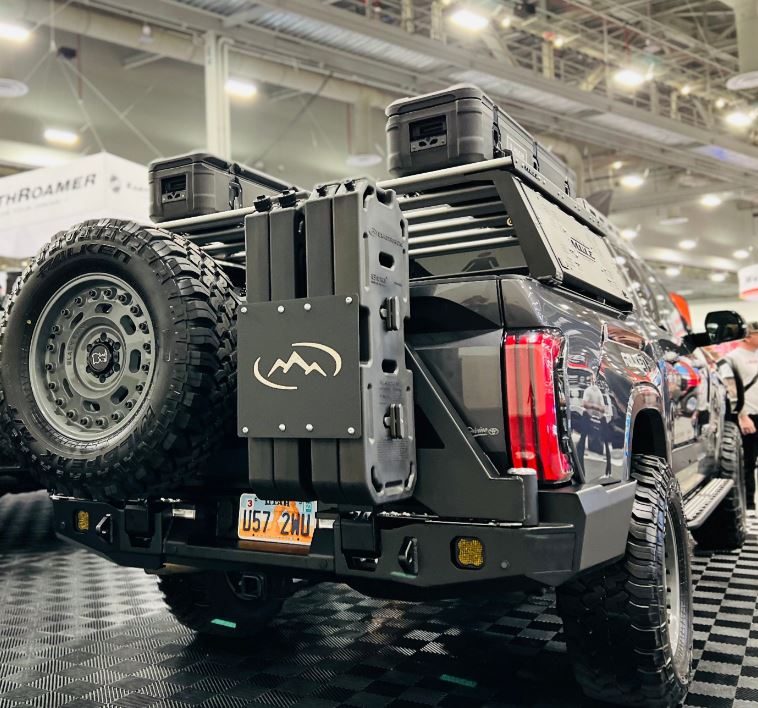

Tundra 2022+ Rear Bumper w/Dual Swing Carrier System
Tundra 2022+ Rear Bumper w/Dual Swing Carrier System
Tundra 2022+ Dual Swing Bumper!
Features:
Locking latch system design that offers an intuitive and easy way to access your truck
Weighs approx. 225lbs
Universal plate backing on swing arms for limitless mounting configurations
Additional Expedition One mounting products for spare tire, hi-lift, geri /scepter/NATO cans, TREDs/Maxtrax, etc
Holds up to a 40" tire with certain wheel/tire combinations (recommended size: up to a 37" tire)
Quick access to arm bearings for easy maintenance
Works with Blind Spot Monitor and Parking Sensors
Integrated light ports fit up to 4" round or square lights
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
100% Designed & Made here in the U.S.A
We highly recommend customers wait until they have product in hand to schedule installations. All cancellations are required in writing and will incur up to a 20% re-stock fee and any applicable packaging and shipping fees. Please review terms and conditions for details.
*Please note that the drop pin on your dual carrier arm is not intended as a safety catch for an arm in motion. The drop pin is designed for locating your arm in a locked position while controlling the arm load. Always remember Newton’s first law as it applies to your arm.
*Tire Mounts: A narrow wheel with an extreme positive offset and a very wide tire will not work with the standard tire mount
This product contains chemicals known to the state of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.gov

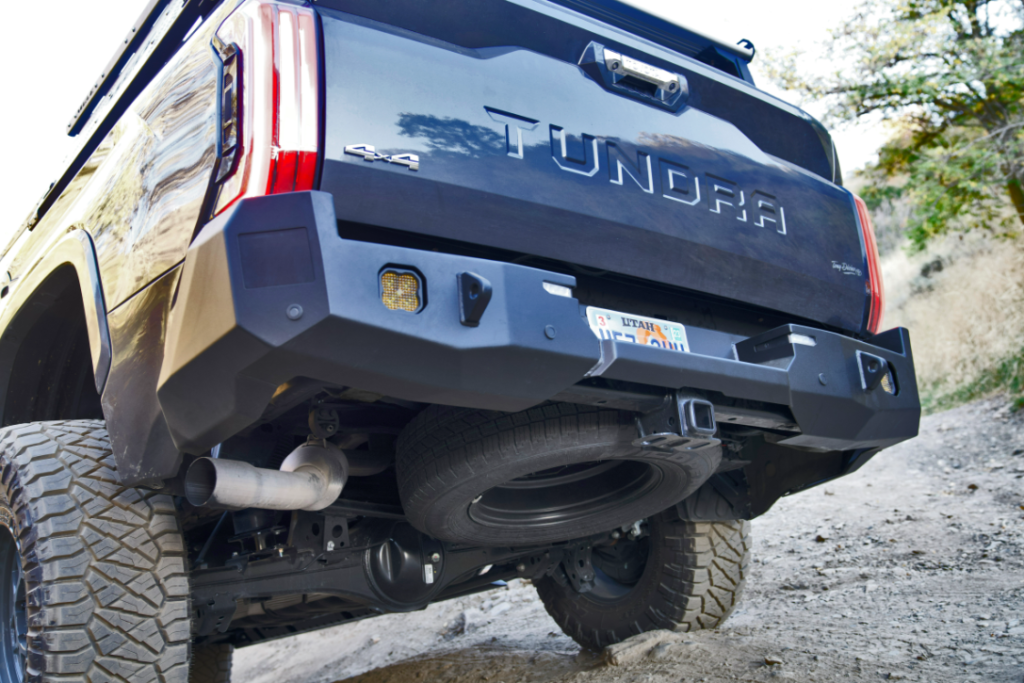

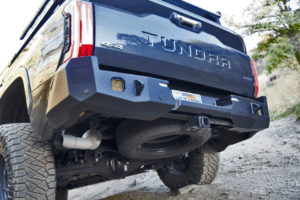

2022+ Tundra Range Max Rear Bumper
2022+ Tundra Range Max Rear Bumper
2022+ TOYOTA TUNDRA RANGE MAX REAR BUMPER!
Comprised of heavy duty 3/16 inch and 1/4 inch inner structure and 3/16 inch outer structure
Weighs approximately 90lbs lbs
Integrated 1 inch thick shackle mounts can accommodate a 3/4 inch shackle
Integrated light ports hold a 3.75 inch round light
*Integrated sensor holes.
Made and designed in the U.S.A.
Fits 2022+ model years
PRODUCT FEATURES:
Works with OEM Hitch Receiver
Cutouts for 3.75" Lights
Recovery Points
2022+ Tundra Trail Series Rocker Guards
2022+ Tundra Trail Series Rocker Guards
Comprised of 3/16" and 1/8" sheet steel and 0.120" wall high strength tubing.
Triangular boxed structure for maximum strength and efficiency.
Tubing is comprised of 2" x 0.120" wall for the inner and 1.5" x 0.120" outer wall tubing.
Steps with aluminum tread plates assist in entering and exiting the vehicle.
Placed to maximize ground clearance.
Optional textured black powder coat.
Item ships common LTL carrier anywhere in the continental US.
