GMC Canyon 2015+ Rear Bumpers

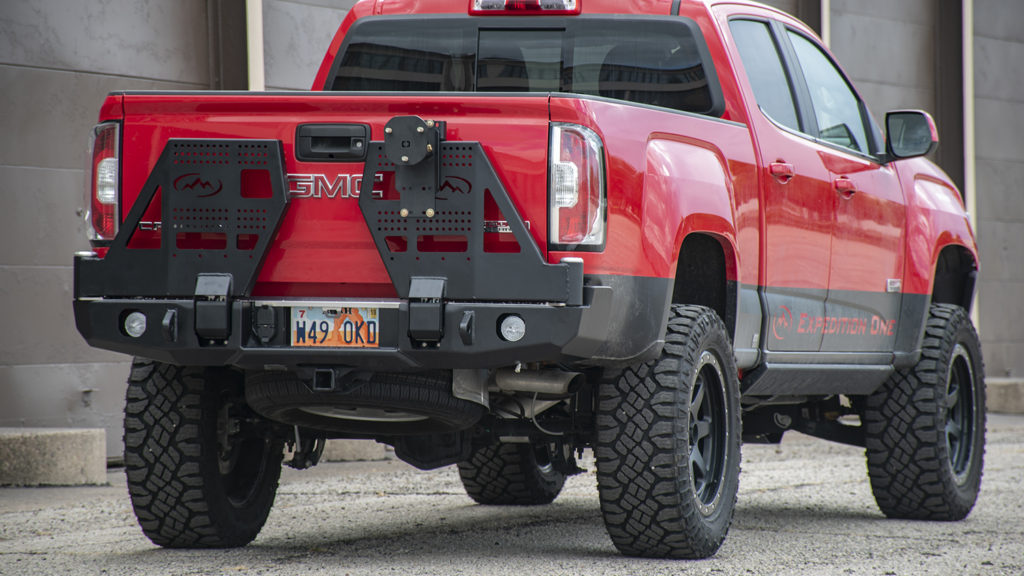

15+ GMC Canyon Dual Swing Rear Bumper

15+ GMC Canyon Dual Swing Rear Bumper

Our innovative, industry-changing dual swing latch design is now available for the GMC Canyon.

Featuring a first of its kind latch mechanism allowing for an intuitive and rugged system to keep your tire and gear secure out on the trails.

These carriers can be locked into place when fully opened providing the flexibility needed for overlanding and off-roading, and the ease of access you want in your daily driver. Our additional mounting options provide further customization to create the perfect setup for your outdoor adventuring needs.


Features:

Patent-Pending locking latch system design that offers an intuitive and easy way to access your truck
Universal plate backing on swing arms for limitless mounting configurations
Weighs approx. 200lbs
Additional Expedition One mounting products for spare tire, hi-lift, geri /scepter/NATO cans, TREDs/Maxtrax, etc
Holds up to a 37" tire with certain wheel/tire combinations (recommended size: up to a 35" tire)
Quick access to arm bearings for easy maintenance
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
100% Designed & Made here in the U.S.A

Available Mounting Options:

Hi-Lift Mount
Hi-Lift/Pul Pal Mount
Expedition One Geri Fuel/Water Mount & Latch
Scepter/NATO Fuel Can Mount (does not currently work with water cans)
Spare Tire Mount (recommended up to 35" tire) Please note: A narrow wheel with an extreme positive offset or a very wide tire will not work with the standard tire mount


*Please note that there is no specific access point in the bumper for the oem undercarriage tire mount as the arm is designed for you to relocate a psare to the tire arm. The undercarriage spare can still be accessed from underneath the vehicle.

*Please note that model years equipped with the blindspot monitor may not function with an aftermarket bumper due to the monitors capability to sense through steel.

Product Features:

  • Patent-Pending locking latch system design that offers an intuitive and easy way to access your truck
  • Universal plate backing on swing arms for limitless mounting configurations
  • Weighs approx. 200lbs
  • Additional Expedition One mounting products for spare tire, hi-lift, geri /scepter/NATO cans, TREDs/Maxtrax, etc
  • Holds up to a 37" tire with certain wheel/tire combinations (recommended size: up to a 35" tire)
  • Quick access to arm bearings for easy maintenance
  • Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin
  • 100% Designed & Made here in the U.S.A

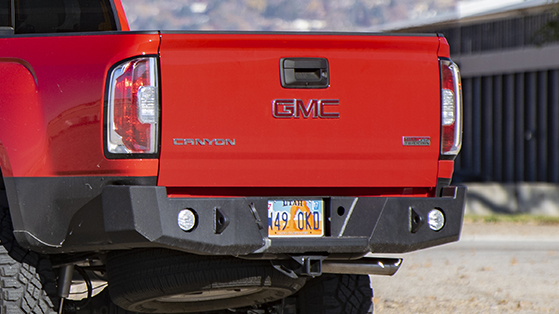

GMC Canyon 2015+ Base Rear Bumper

GMC Canyon 2015+ Base Rear Bumper

For the 2016 GMC Canyon
Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin.
Integrated feet forward winch mount
Weighs approx. 90 lbs
1" thick 3/4 recovery shackle mount (purchase 3/4" shackles here)
Optional center hoop and textured black powder coat (photos coming soon).
Two light tabs on the top face of bumper for 6" to 8" lights(under center hoop if ordered with optional hoop)
Integrated light ports (see light options below)
Designed and made in The U.S.A
**Fits non-integrated 8,000-10,000 lb winch without use of solenoid relocation kit.
* Please note that model years equipped with the blindspot monitor may not function with an aftermarket bumper due to the monitors capability to sense through steel.

Product Features:

  • For the 2016 GMC Canyon
  • Comprised of 3/16" and 1/4" inner structure and a 3/16" thick outer skin.
  • Integrated feet forward winch mount
  • Weighs approx. 90lbs
  • 1" thick 3/4 recovery shackle mount
  • Optional center hoop and textured black powder coat (photos coming soon).
  • Two light tabs on the top face of bumper for 6" to 8" lights(under center hoop if ordered with optional hoop)
  • Integrated light ports (see light options below)
  • Designed and made in The U.S.A
  • **Fits non-integrated 8,000-10,000 lb winch without use of solenoid relocation kit.
